The TUNNEL.RING.RR series of industrial tunnel washing systems are ring-type treatment machines designed specifically for components with complex shapes. These systems are widely used in production lines in the automotive and aerospace sectors and for inter-process treatments, ensuring high precision, especially prior to assembly.

Thanks to their high flexibility, TUNNEL.RING.RR industrial tunnel washing systems are suitable for both large-volume production and smaller batches.

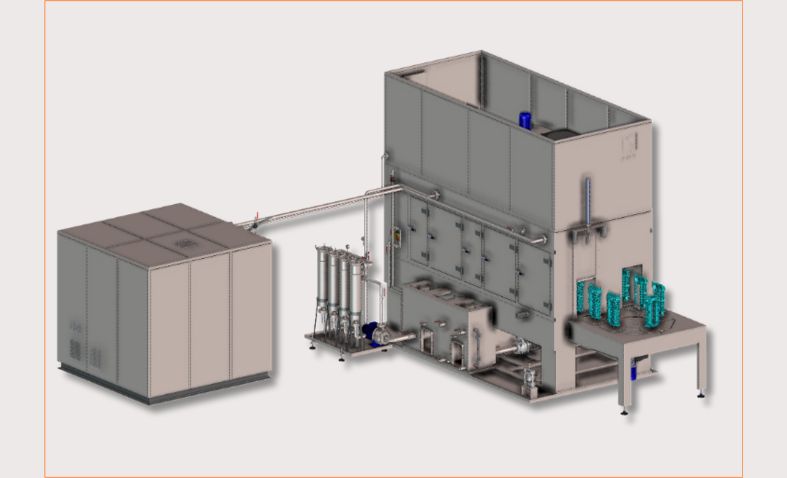

The system is designed exclusively for spray treatment with aqueous solutions, utilizing a combined chemical, mechanical, and thermal action to ensure effective cleaning and deburring. The structure includes a multi-stage tunnel with a monoblock conveyor integrated with the treatment solution storage tanks.

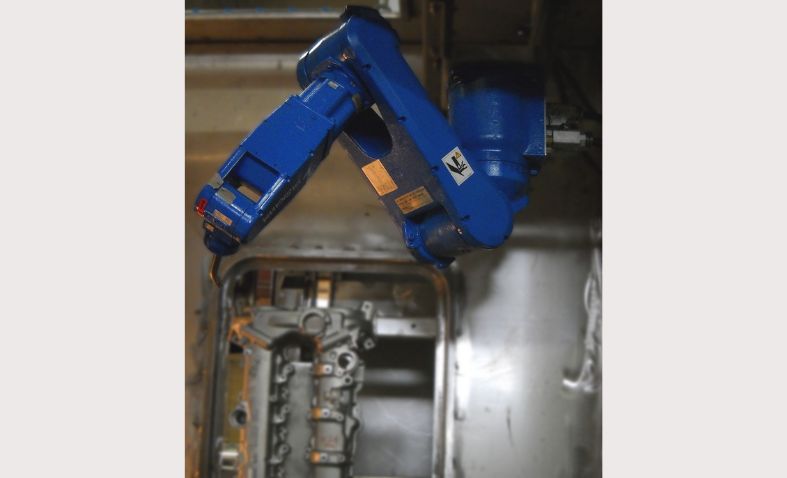

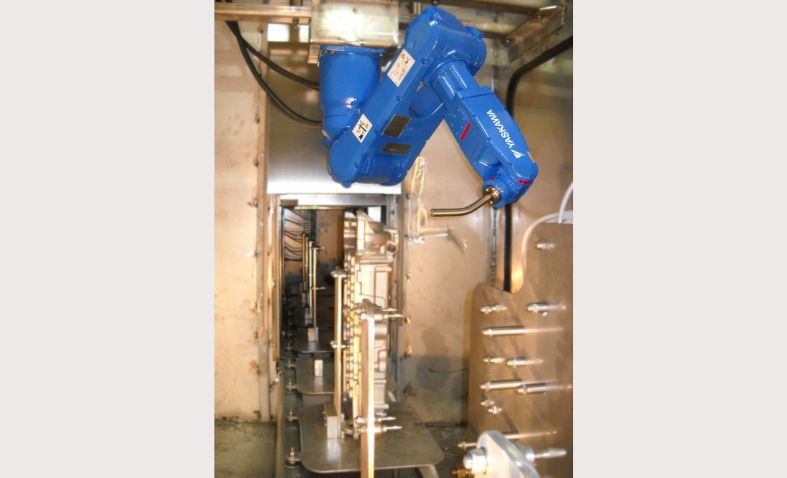

The process is based on the step-by-step movement of the parts, fixed on pallets with a defined geometry, which pass through the various stages of the washing cycle. During the passage, the parts are subjected to high-pressure and high-temperature sprays, reaching every nook and cranny thanks to the presence of a 6-axis anthropomorphic robot in one or more stations, which ensures complete coverage of critical areas.
